MKA 450

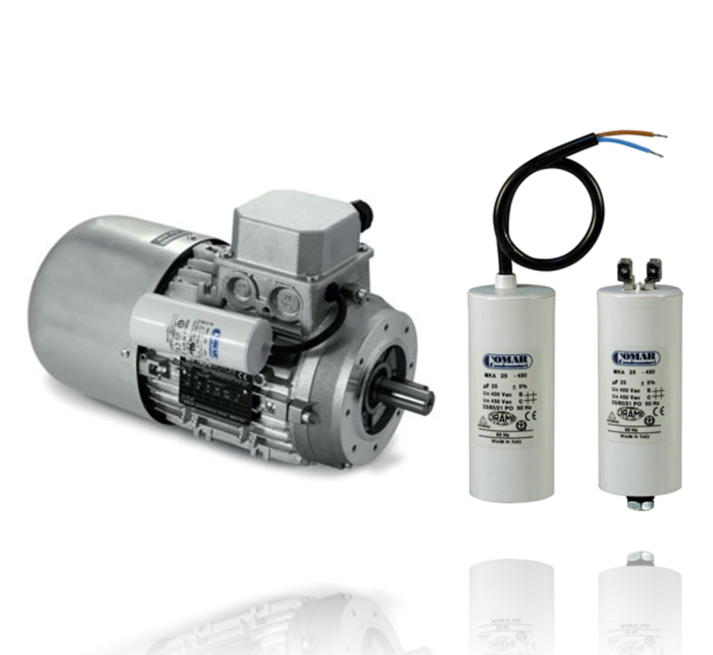

The MKA 450 capacitors are suitable for the standard motor applications.

Description

PERFORMANCE DATA

Rated Voltage 450 Vac
Rated Frequency 50 / 60 Hz
Capacitance Tolerance -/+ 5%
Operating class
400 V – B 10000 h (HPFNT)
450 V – C 3000 h (HPFPU)
Dielectric Self-healing MKP
Safety class S0

STANDARDS AND APPROVALS

Reference standards CEI EN 60252-1; VDE560-8
Homologation
EN60252-1 (1.5 ÷ 45 μF)
EN60252-1 (1.5 ÷ 45 μF)
File E214047 (upon request)

TECHNICAL DATA

Climatic category -25 °C / +85 °C
Protection degree IP00
Loss Factor ≤ 5 x 10 ^-4 typical value
Test Voltage between terminals 1,75 Vn x 2 sec (min.)
Test Voltage between terminals and case 2 Vn x 2 sec (min.)

Product details

MKA (eng)

Catalog

MOTOR CAPACITORS
